MAKESAFE BRAKE FOR SURFACE GRINDER

Integrated Machine Brake (Add-On Kit)

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

This system is intended for situations where motor braking needs to be added to an existing control system.

Popular for surface grinders and other semi-automated equipment.

How To Purchase



Unlike our other systems, this unit is not plug-and-play but is instead field-wired into the existing control system. But don’t worry – we do all the hard work for you and can provide an illustrated installation guide to make the install simple and well within the capability of most in-house maintenance staff. We’ll even contact you to verify compatibility with your machine before starting the build.

Category: Safety Systems Tags: QTY Discount, System Bundles
  • Description
  • Specifications
  • Documents & Downloads
  • Media
  • Reviews (1)

Description

Product Details:

This industrial motor control adds Motor Braking to your existing machinery. That means that you can operate your machine just like you’re used to – the only difference being that the motor will now quickly stop every time it’s turned off.

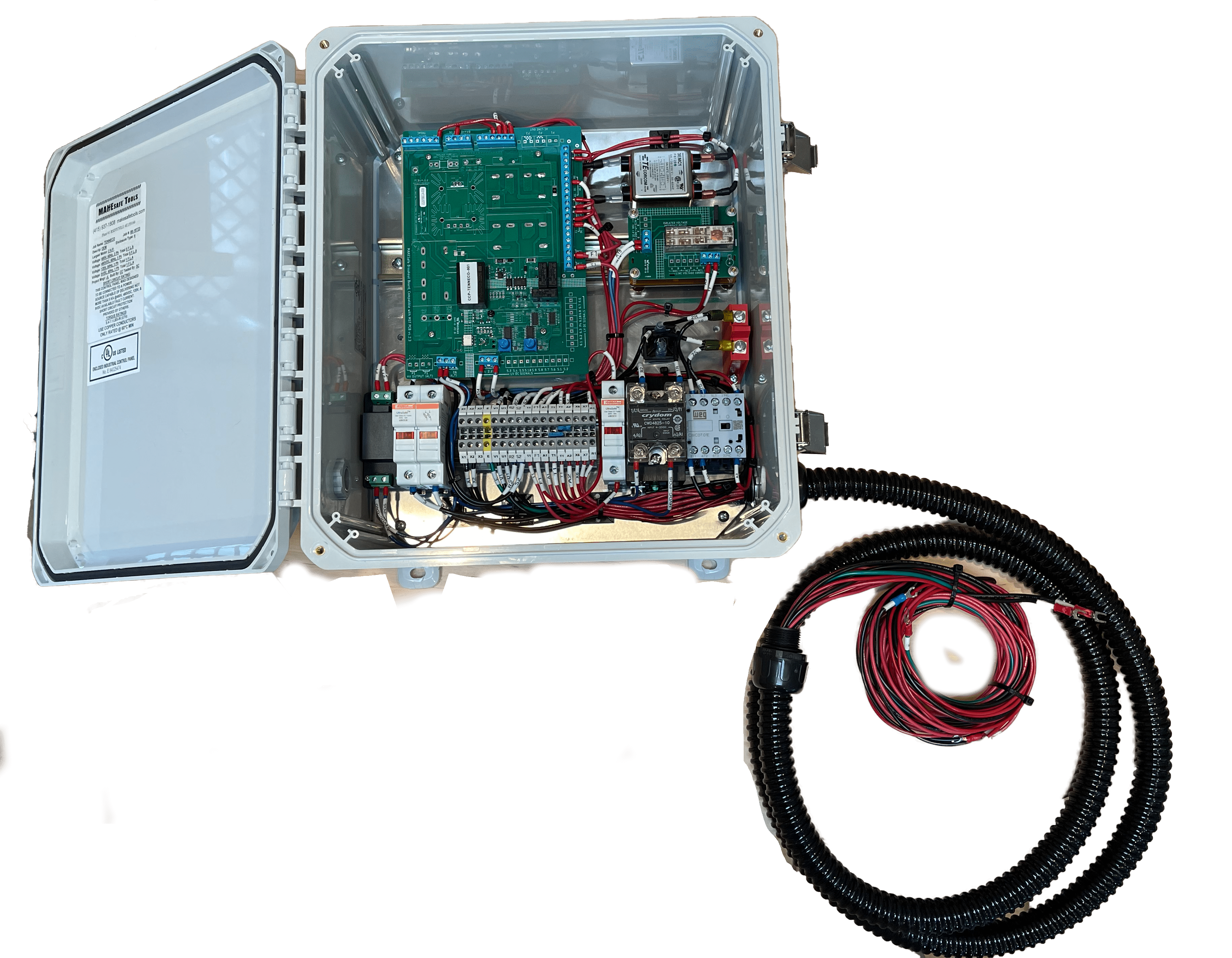

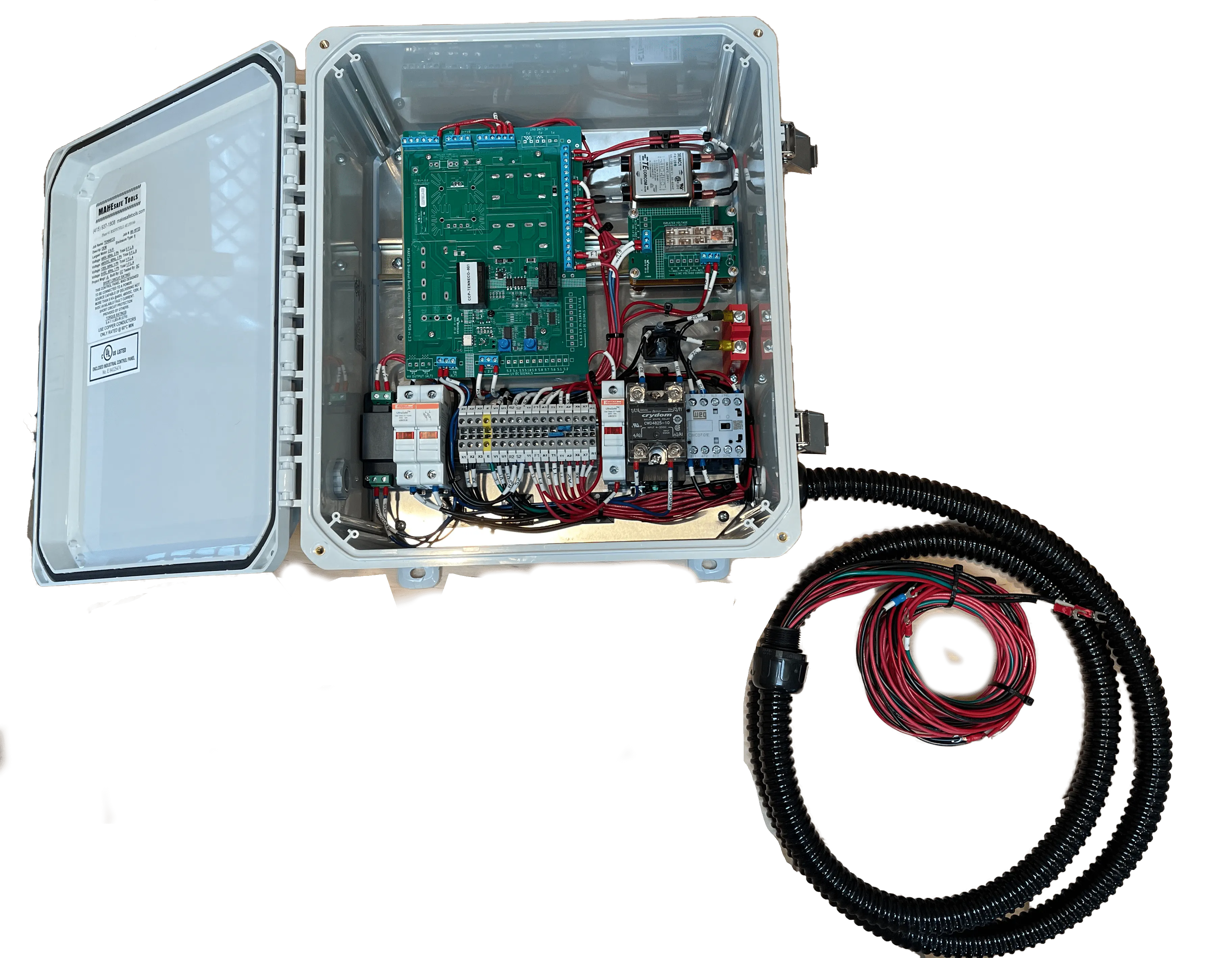

The system is provided as a UL508 Industrial Control Panel and all connections are pre-wired and conveniently bunded into flexible conduit for easy field installation onto your machine.

Applications

Our brake kits have been added to all kinds of machinery but the most common application is surface grinders.

This device relies on your machine already having a basic control system with things like a control transformer, motor overload protection, etc. If you’re not sure – just contact us and we’ll help get you the solution you need. Or if you want a full turkney system, check our our IMB or PTB products.

Each package includes:

  • The Industrial Control Panel
  • Pre-wired conduit bundle (at least 6′ in length)
  • Hardware & Connector Kit (connectors, cable glands, zip ties, etc.)
  • Product Manual & Adjustment Tool

Note: This control panel does not come with any manual controls as it’s intended to work with the controls already on your machine.

Approvals

UL508A: Industrial Control Panels
CSA: Industrial Control Equipment
How To Order:

How To Order:

We can work with you in whatever way is best for you so feel free to contact us directly but the most efficient ways is to first complete the machine information request, linked below. This will allow us to gather the information we need to confirm compatibility and get you the most accurate quote.

Machine Information Request

Alternate Configurations & Upgrades

Our products are also offered with multiple configuration options and accessories, including:

Illustrated Installation Guides: send us some photos of your machine and we’ll create a machine-specific installation guide with useful illustrations and diagrams

Control & Indication: additional e-stop buttons, status lights, etc.

Frequency: products can also be configured for 50hz operation

If you want to explore these alternate configurations, please give us a call.

Specifications

These units are built on a per-machine basis and can be crafted to meet any requirements.

If you’re ready to get a quote, you can start the process here.

Documents & Downloads

Dimensional Drawings: Contact Us

CAD Files: Contact Us

Media

Video Demos

This videos show some of our other products but the braking action is still the same.

1 review for Integrated Machine Brake (Add-On Kit)

  1. Rated 5 out of 5

    Metal Fabricator in Pheonix – August 30, 2022

    This system was easy enough to integrate that our intern could do it and Scott was always available to help if he had questions.
