Photo of Milling Machine Control System. Perfect for Bridgeport mill.

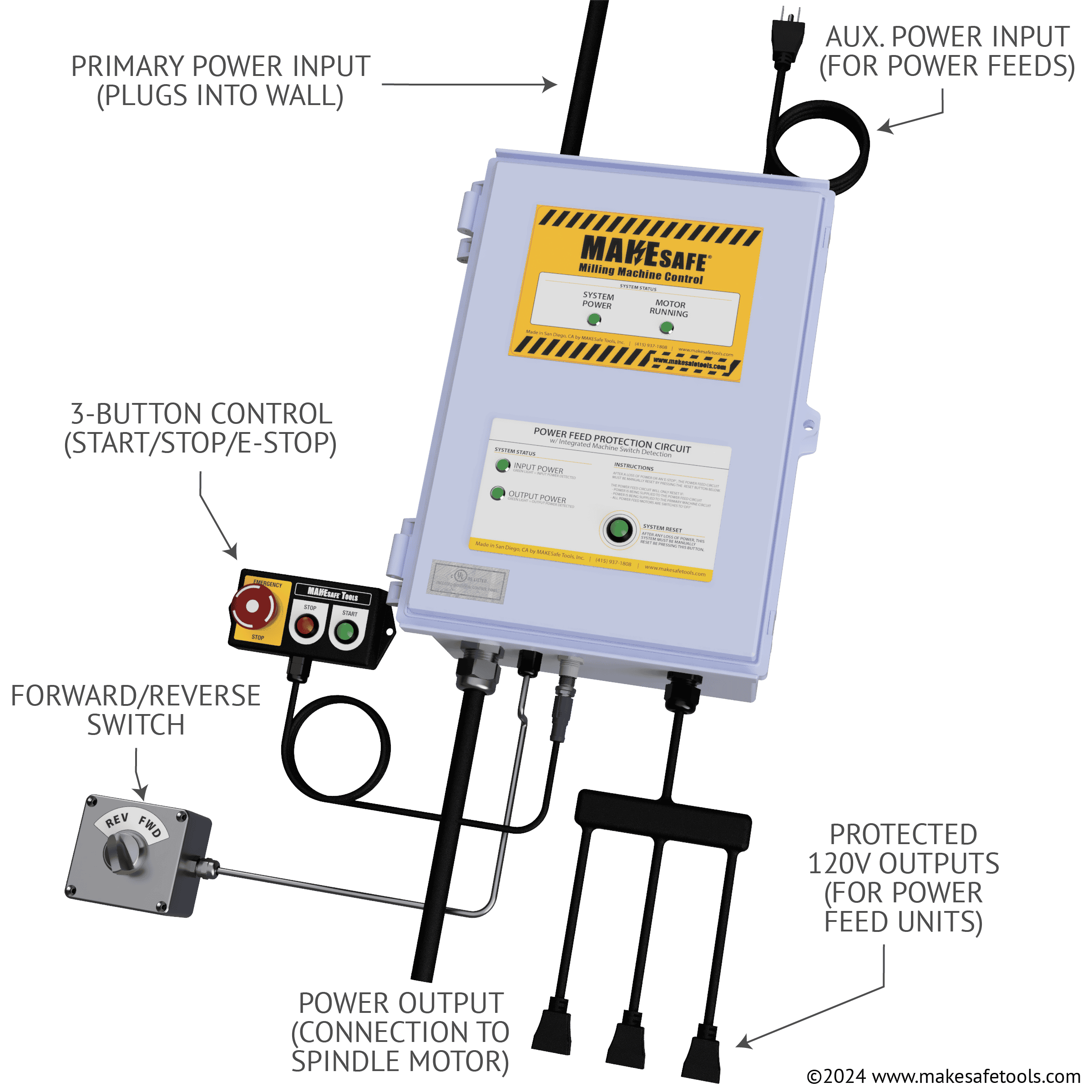

Diagram of Milling Machine Control System with connections and features outlines. Perfect for Bridgeport mill.
MET Labs Listing and Approval by OSHA for use in USA and Canada.

Milling Machine Control System

The perfect safety system for your Bridgeport or other milling machine. E-Stop & Anti-Restart. We even protect your power feeds!

Do you also want braking for your spindle? Check out our Milling Machine Brake.

Clear
SKU: N/A Category: Safety Systems
  • Description
  • Specifications
  • Model Number Guide
  • Documents & Downloads
  • Media
  • Reviews (0)

Description

Product Details:

This industrial motor control provides all of the following protections:

  • Anti-Restart (Spindle Power Feeds)
  • Motor Overload Protection (Spindle)
  • Short Circuit Protection (Spindle Power Feeds)
  • Emergency Stop (E-Stop) (Spindle Power Feeds)
  • Visual Status Indication

Our devices also:

  • Come Pre-wired for Easy Installation
  • Fully Approved Industrial Motor Controls (UL 508A)
  • Fully customizable (contact us)

Applications

MAKESafe Industrial Motor Controls can be used with any piece of industrial machinery; however, this particular unit is best suited for milling machines.

Video Demos

(coming soon)

Each standard package includes:

  • Milling Machine Brake and Motor Controller
  • 3-Button Control Panel on 5′ remote tether
  • Forward/Reverse Switch on 5′ remote tether
  • Product Manual & Adjustment Tool

Need another configuration? Want to buy with terms? Request a quote!

Button Panel Details:

The compact control panels are made of durable ABS plastic and maintains a UL94 V-0 rating. The start and stop buttons are custom manufactured by OTTO Controls in Illinois and are designed for long-term durability with solid aluminum bezels, a no-slip surface finish, and a strong tactile response. The latching emergency-stop button is Swiss-manufactured by EAO. The entire control panel is water, dust, and oil resistant and rated for millions of on/off cycles.

The control panel connects easily to the power tool brake via an industrial M12 twist connector. You can easily mount the control panel in a convenient location thanks to the dual mounting flange and 5 ft (1.5m) cable extension.

Approvals

UL508A: Industrial Control Panels

CSA: Industrial Control Equipment

Alternate Configurations

Multiple additional product configuration options and accessories are available, including:

Control Accessories: foot switches, additional e-stop buttons, guard interlocks, attachments for automation

Frequency: We can configure our products for 50hz operation (for international customers)

Plugs: We can use any NEMA or international plug type and pre-wire it here at the factory

If you want to explore these alternate configurations, please give us a call.

Specifications

Compatibility Guide: see product manual.

Need another configuration? Different plugs? Different Controls? Maybe an international version? Or, do you want to buy with terms? Request a quote!

Model Number Prefix
Input Voltage
Rated Horsepower
Approvals
Enclosure
Safety Rating
Power Connections
Dimensions
Weight
User Manual
These units are built to order and can be made to any specification.
Standard sizes are denoted by their model number suffix (e.g. HP1=1.0 HP, HP5=5.0 HP).
For example: Model "MMC-V240-P3-HP5" is rated for 5.0HP.
UL508A: Industrial Control Panels
CSA #14-13: Industrial Control Equipment
NEMA-rated polycarbonate/fiberglass composite enclosure. Includes mounting brackets.
single-channel (standard)
customer specified safety performance level (optional)
field connection to internal terminal blocks (standard)
pre-wired with 6′ SO cord (optional)
15.25″ x 13.25″ x 7.75″ (388 mm x 337 mm x 197 mm)
Approx. 35 lbs. (16 kg)
MMC-V120-P1
1ϕ 120V
MMC-V240-P1
1ϕ 240V
MMC-V240-P3
3ϕ 240V
MMC-V380-P3
3ϕ 380V
MMC-V480-P3
3ϕ 480V
MMC-V600-P3
3ϕ 600V

Model Number Guide

MMC
1
-
V240
-
2
P3
-
HP5
3
-

4

1. Product Family

MMC: Milling Machine Control

2. Voltage

V120 - P1: 1ϕ 120V
V240 - P1: 1ϕ 240V
V240 - P3: 3ϕ 240V
V480 - P3: 3ϕ 480V
V600 - P3: 3ϕ 600V

3. Horsepower Rating

HP3  : 3.0 HP
HP5  : 5.0 HP
HP7  : 7.5 HP
HP10: 10  HP
HP15: 15  HP
HP20: 20  HP
HP25: 25  HP

4. Configuration Code

(blank)   : Standard 3-Button Control
FS1        : Foot Switch
INT        : 3-Button Control w/ Interlock
FS1-INT: Foot Switch w/ Interlock
C            : Control Pigtail

Documents & Downloads

Dimensional Drawings: Contact Us

CAD Files: Contact Us

Media

Video Demos

(coming soon)
