Mill Safety

The most common mill hazards are contact with the rotating cutter, workpiece ejection from inadequate clamping, flying chips and coolant spray, cutter breakage, entanglement with the rotating spindle, coasting after shutdown, and unintentional restarting after power loss. Mill operators routinely position their hands within inches of an exposed rotating cutter during setup, measurement, and chip clearing, making contact injuries particularly common. OSHA addresses mill hazards primarily through the general machine guarding requirements of 29 CFR 1910.212^[1], which require protection against point-of-operation, nip point, and rotating part exposure.

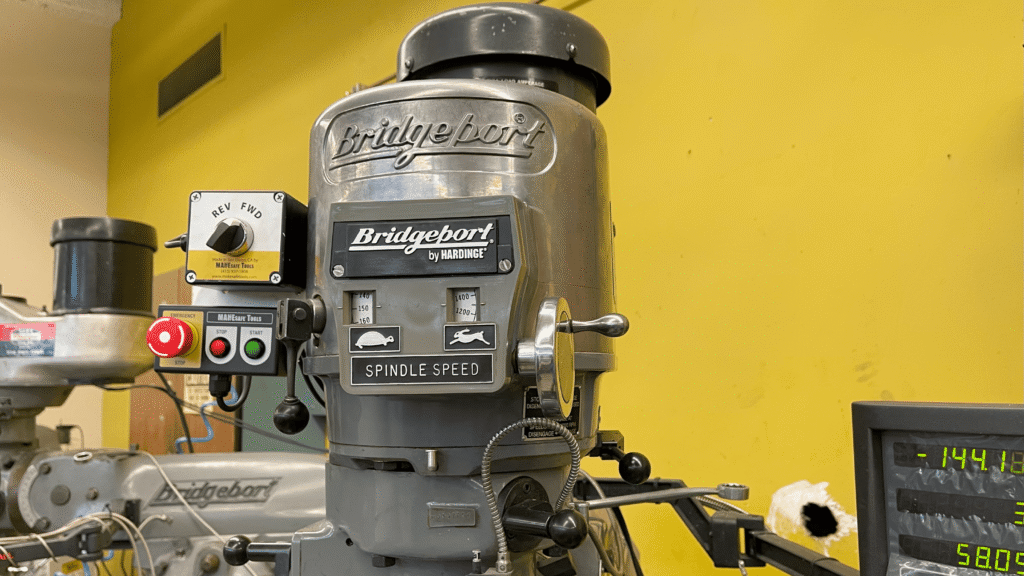

Yes. OSHA requires that most motor-driven machinery, including milling machines, have a readily accessible means to quickly disconnect power in an emergency. ANSI and NFPA 79^[5] also address emergency stop requirements, and CAL/OSHA §4001^[4] specifically requires an emergency stop device for industrial machinery. An e-stop is especially valuable on a mill because the operator’s hands are routinely close to the cutter and a fast shutdown can be the difference between a near miss and a serious injury. It also prevents costly part rejects when something goes wrong mid-cut.

Inadequate clamping is one of the most common causes of mill accidents. As the cutter engages the material, it generates significant lateral and rotational forces – if the workpiece isn’t securely clamped, it can be pulled out of position, ejected at high speed, or pulled into the cutter. Hand pressure cannot reliably resist the forces a mill cutter generates, particularly during deep cuts or climb milling. Every workpiece should be secured in a properly mounted milling vise, fastened with T-slot clamps, or held in a dedicated fixture before the spindle is powered.

Mill chips are sharp, often hot, and frequently embedded in oily coolant – clearing them by hand causes lacerations, embedded splinters, and burns. Compressed air is also unsafe: it can drive chips into skin or eyes (the operator’s or a coworker’s), and OSHA limits compressed-air use for cleaning to under 30 psi with effective chip guarding [29 CFR 1910.242(b)]^[13]. Use a chip brush, chip hook, or shop vacuum, always with the spindle fully stopped.

No. OSHA Publication 3170, Safeguarding Equipment and Protecting Employees from Amputations, directs employers to instruct employees not to wear gloves, jewelry, or loose-fitting clothing while operating a milling machine, and to secure long hair in a net or cap.

The rotating spindle, collet, and cutter can catch glove fabric and wind the hand into the cutter in a fraction of a second which is one of the most serious entanglement hazards in any machine shop. Gloves also reduce dexterity and won’t survive contact with the cutter, so the right approach is engineering and work-practice controls (chip shields where appropriate, securely clamped workpieces, brushes for chip removal rather than hands) rather than PPE. If hand protection is needed for material handling around the shop, gloves should come off before the spindle is powered on.

Mill spindles can continue rotating for 30 seconds or more after power is removed, depending on spindle mass, cutter inertia, and bearing condition. During that window, the cutter is still capable of causing severe lacerations or amputation if the operator reaches in for chip clearing, measurement, or a cutter change. The most effective solution is an electronic motor brake, which stops the spindle in seconds after shutdown and significantly reduces this exposure window. Some industrial mills include a foot-operated or panel-mounted brake from the factory; many manual and benchtop mills do not.

End mills typically break from excessive depth of cut, too-aggressive feed rates, incorrect spindle RPM for the material, chatter from inadequate workpiece rigidity, or hard inclusions in the workpiece. Smaller-diameter carbide end mills are especially fragile and can shatter without warning. Prevention starts with selecting the correct cutter and tool holder for the operation, calculating proper speeds and feeds for the material, ensuring the workpiece is rigidly clamped, taking lighter cuts when chatter develops, and inspecting cutters for wear or damage before each use.

Many manual mills use detachable or fixed crank handles to position the table, saddle, and knee. If a power feed is engaged on the same axis while a crank handle remains attached and engaged, the handle can spin rapidly under power and strike the operator. Modern mills often include spring-loaded handles that auto-disengage when power feed activates, but many older or modified mills do not. The administrative safeguard is straightforward: always disengage power feed before grasping a crank handle, and always disengage the handle (or verify auto-disengage) before activating power feed.
