MAKESafe Power Brake Tool options
MAKESafe Power Tool Brake
MAKESAFE 3-BUTTON CONTROL PANEL CP-3

Power Tool Brake Configurator

A plug-and-play safety system for industrial machinery that provides an ANSI-compliant emergency stop, motor braking, and accidental restart protection.

Need another configuration? Want to buy with terms? Request a quote!

SKU: PTB-COMP Category: Safety Systems

Base Unit Voltage 1 Base Unit Voltage

1P 120V Connection Options 2 1P 120V Connection Options

1P 240V Connection Options 3 1P 240V Connection Options

3P 240V Connection Options 4 3P 240V Connection Options

Buttons & Controls 5 Buttons & Controls

6 Review and Purchase

    • Description
    • Reviews (0)

    Description

    Product Details:

    This one device provides three distinct safety features that help to prevent injuries and avoid OSHA citations. These features are:

    1. Category-1 Emergency Stop Button
    2. Unintentional Restart Prevention
    3. Motor Braking

    This standard product configuration includes everything you need to protect industrial machines like bench grinders, band saws, disc sanders, surface grinders, lathes, and other industrial equipment. If you questions about compatibility, please review the compatibility guide in the specifications section or contact us. If you need an alternate configuration, please check out our custom configuration page or contact us directly.

    Video Demos

    Need another configuration? Want to buy with terms? Request a quote!

    Control Panel Details:

    The compact control panels are made of durable ABS plastic and maintains a UL94 V-0 rating. The start and stop buttons are custom manufactured by OTTO Controls in Illinois and are designed for long-term durability with solid aluminum bezels, a no-slip surface finish, and a strong tactile response. The latching emergency-stop button is Swiss-manufactured by EAO. The entire control panel is water, dust, and oil resistant and rated for millions of on/off cycles.

    The control panel connects easily to the power tool brake via an industrial M12 twist connector. The 5 ft (1.5m) cable extension and dual mounting flanges allows the control panel to be mounted easily in a convenient location.

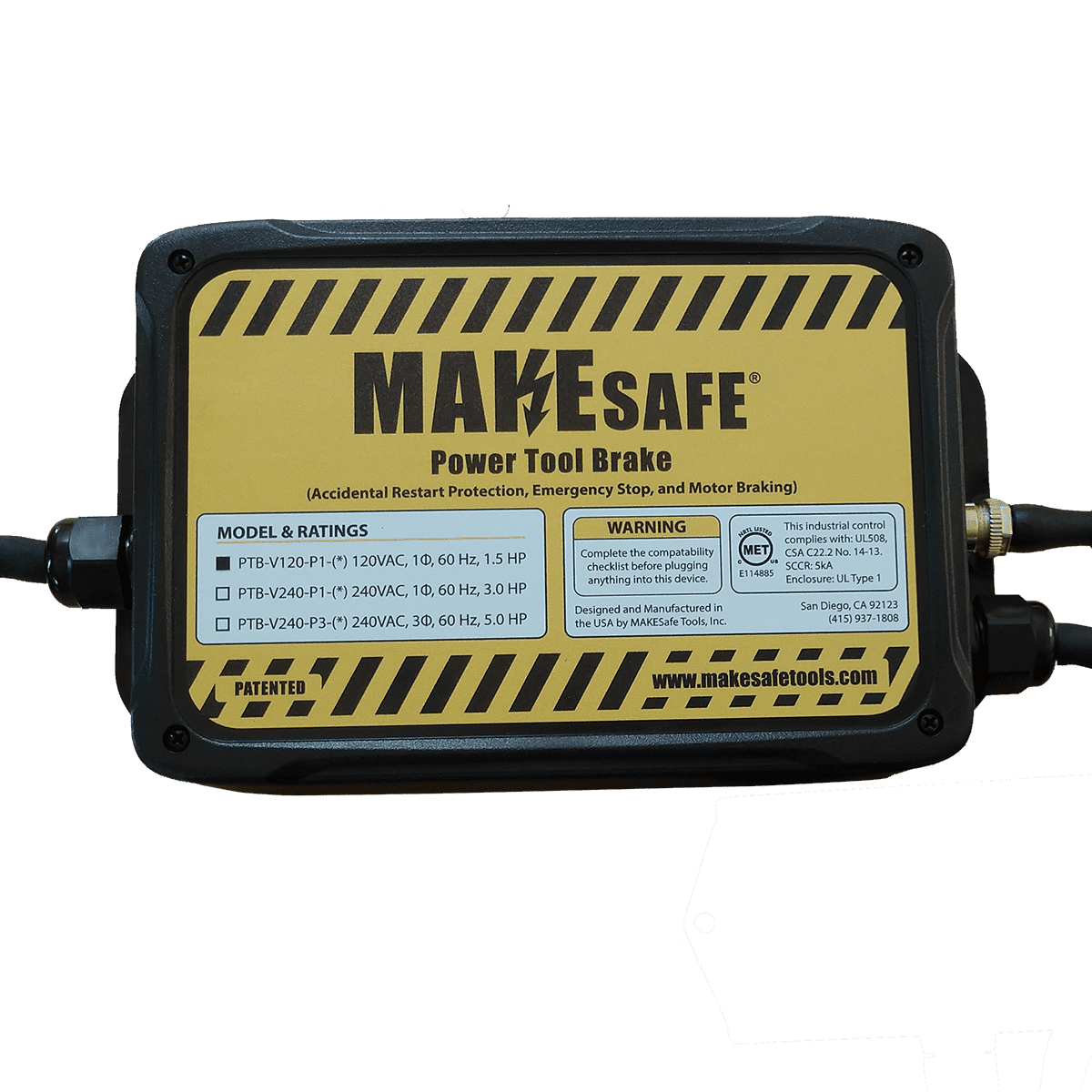

    Power Tool Brake Details

    The Power Tool Brake is constructed of durable ABS plastic and maintains a UL94 V-0 rating. With a 5′ (1.5m) power extension and dual mounting flanges, it is designed to be easily mounted in an out-of-the-way location. Basic calibration can be achieved via two access holes in the side of the enclosure and rubber plugs are included to seal these holes once installation is complete.

    Installation

    Installation takes less than five minutes for most customers and includes the following steps:

    1. Plug your machine into the power tool brake.
    2. Cover your existing machine switch and mount the control panel.
    3. Calibrating the braking power.

    Detailed instructions are available in the product manual.

    Approvals

    UL508: Industrial Control Devices (E114885)
    CSA #14-13: Industrial Control Equipment (E114885)

    Alternate Configurations

    Our products are also offered with multiple configuration options and accessories, including:

    Control Accessories: foot switches, additional e-stop buttons, guard interlocks, attachments for automation

    Frequency: products can also be configured for 50hz operation

    Plugs: products can be fitted at the factory with any plug type you require

    If you want to explore these alternate configurations, please visit our custom configuration page or give us a call.
