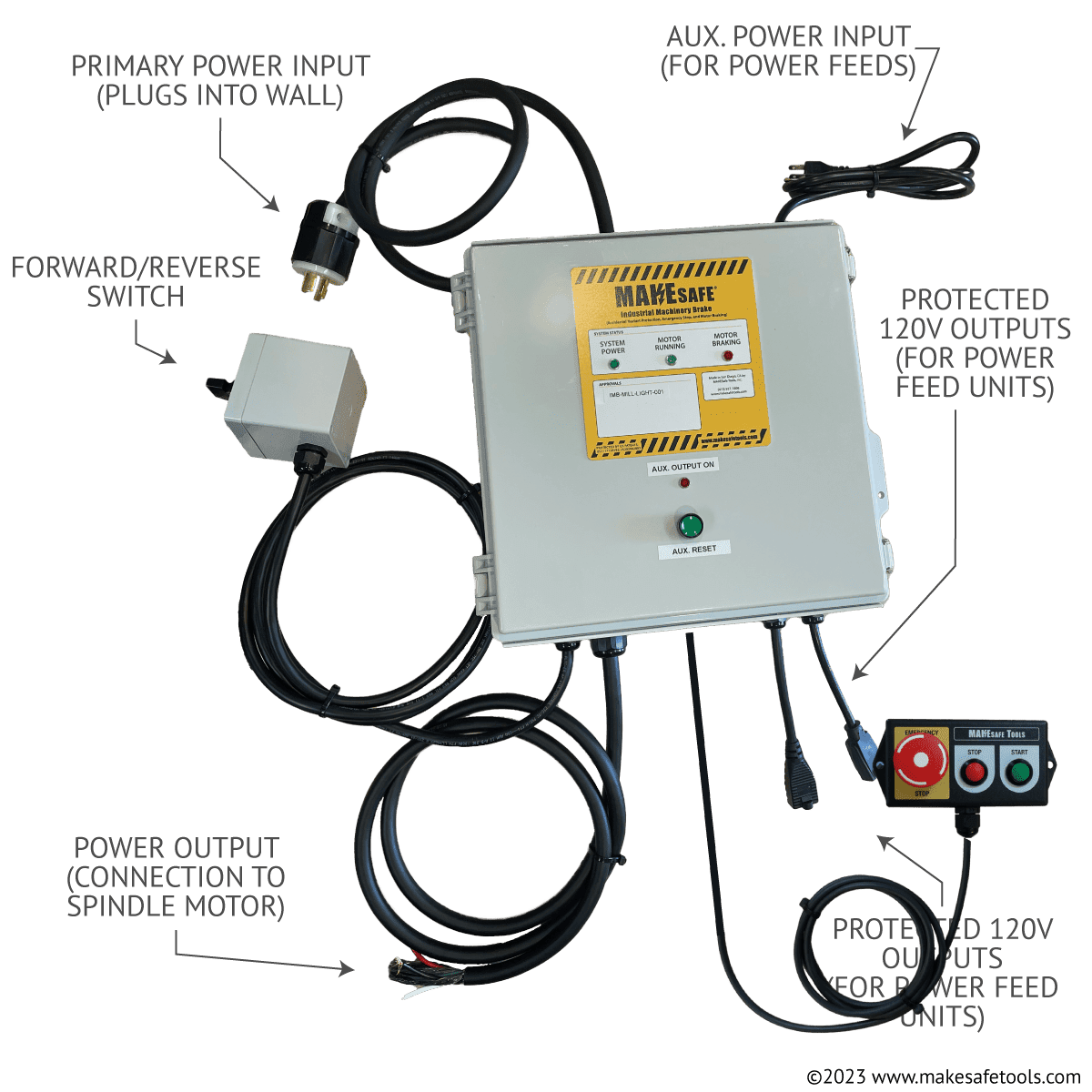

Diagram of Milling Machine Braking System. Perfect for Bridgeport mill.

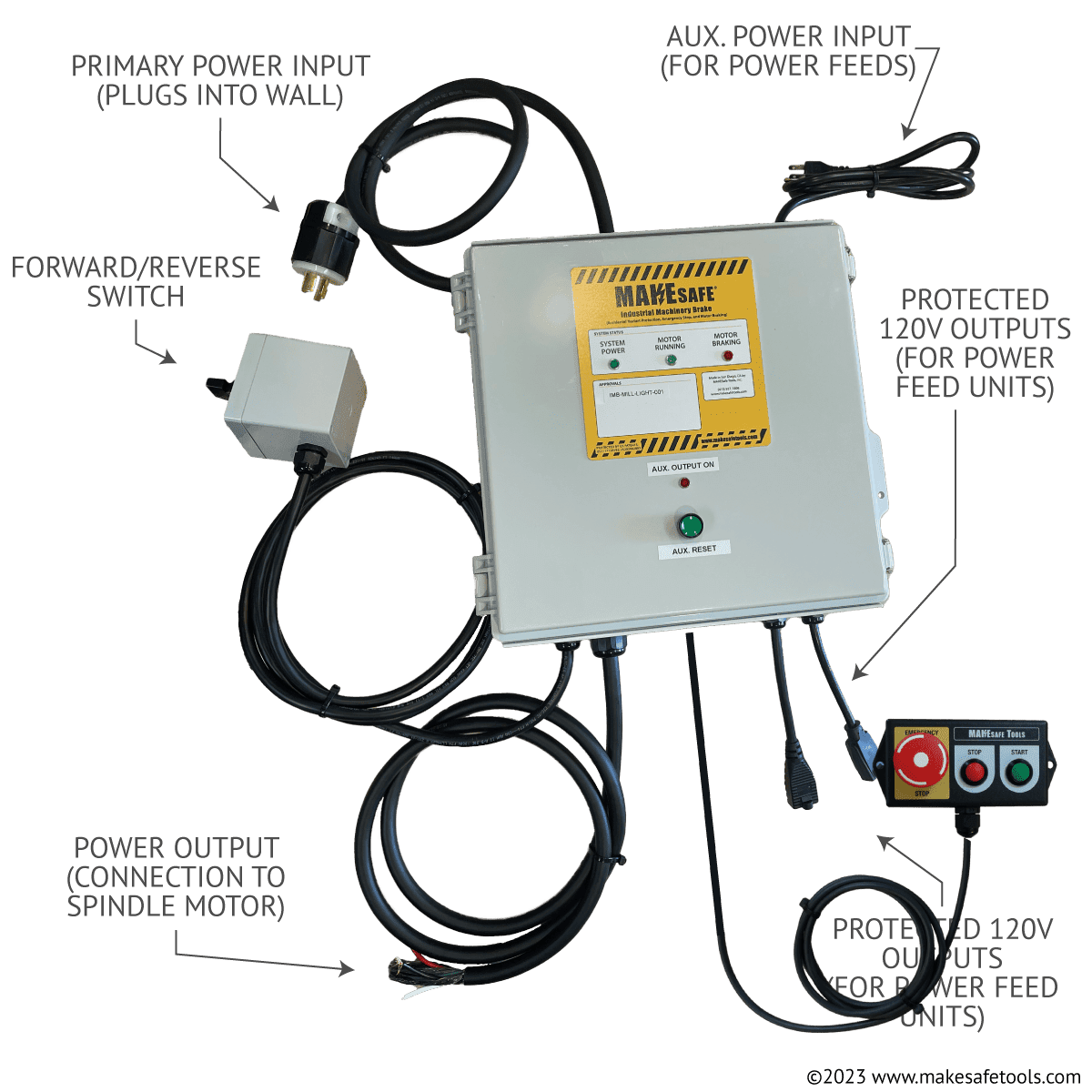

Diagram of Milling Machine Braking System with connections and features outlines. Perfect for Bridgeport mill.
MET Labs Listing and Approval by OSHA for use in USA and Canada.

Milling Machine Brake System

The perfect safety system for your Bridgeport or other milling machine. E-Stop, Anti-Restart, and Spindle Braking. We even protect your power feeds!

Do you not need braking for your spindle? Check out our Milling Machine Control.

Clear
SKU: N/A Category: Safety Systems Tags: qty-discount, system-bundles
  • Description
  • Specifications
  • Model Number Guide
  • Documents & Downloads
  • Media
  • Reviews (0)

Description

Product Details:

This industrial motor control provides all of the following protections:

  • Motor Braking (Spindle)
  • Anti-Restart (Spindle + Power Feeds)
  • Motor Overload Protection (Spindle)
  • Short Circuit Protection (Spindle + Power Feeds)
  • Emergency Stop (E-Stop) (Spindle + Power Feeds)
  • Visual Status Indication

Our devices also:

  • Come Pre-wired for Easy Installation
  • Fully Approved Industrial Motor Controls (UL 508A)
  • Fully customizable (contact us)

Applications

MAKESafe Industrial Motor Controls can be used with any piece of industrial machinery but this particular unit is best suited for milling machines..

Video Demos

(these videos show another model, but the function is exactly the same as this one)


Each standard package includes:

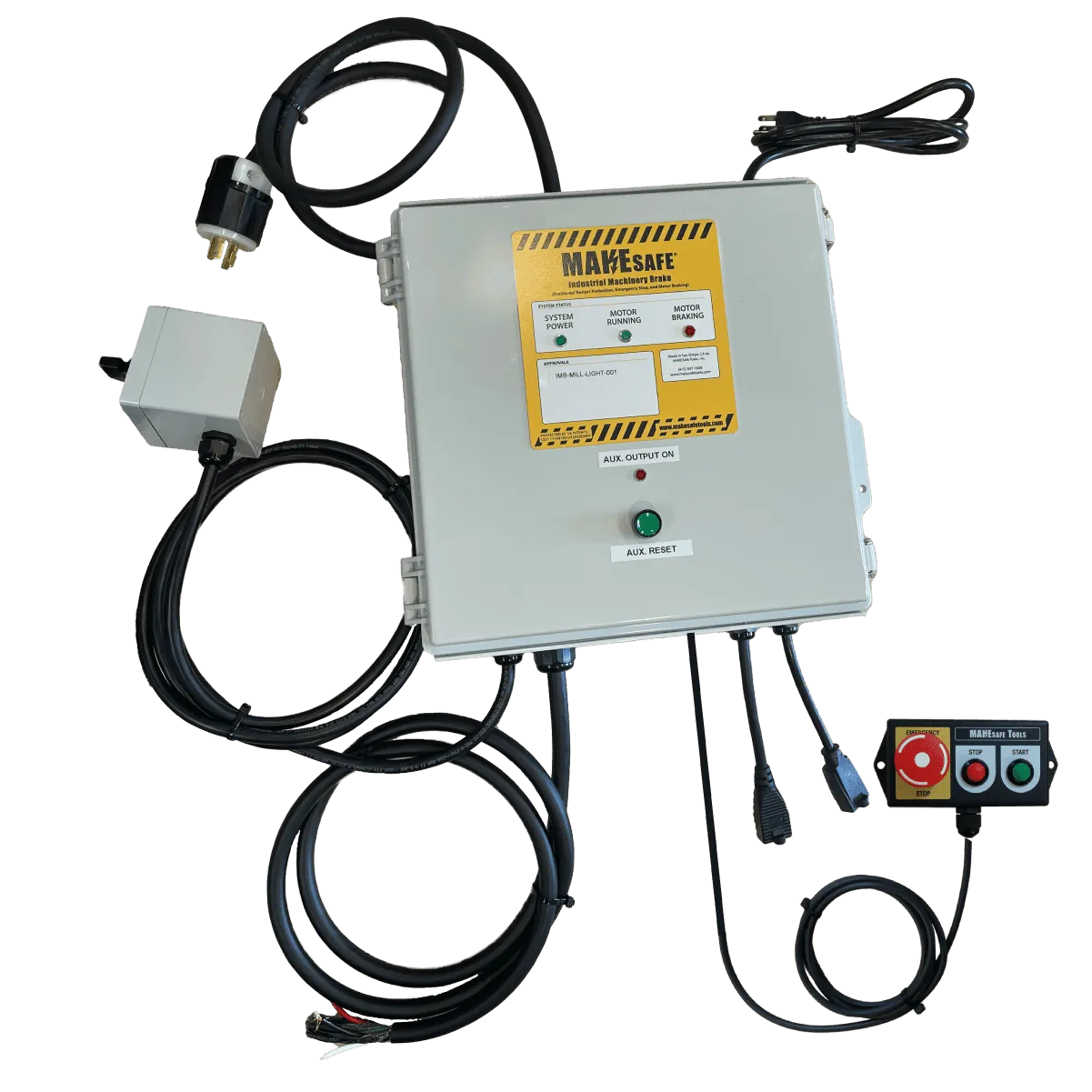

  • Milling Machine Brake and Motor Controller
  • 3-Button Control Panel on 5′ remote tether
  • Forward/Reverse Switch on 5′ remote tether
  • Product Manual & Adjustment Tool

Need another configuration? Want to buy with terms? Request a quote!

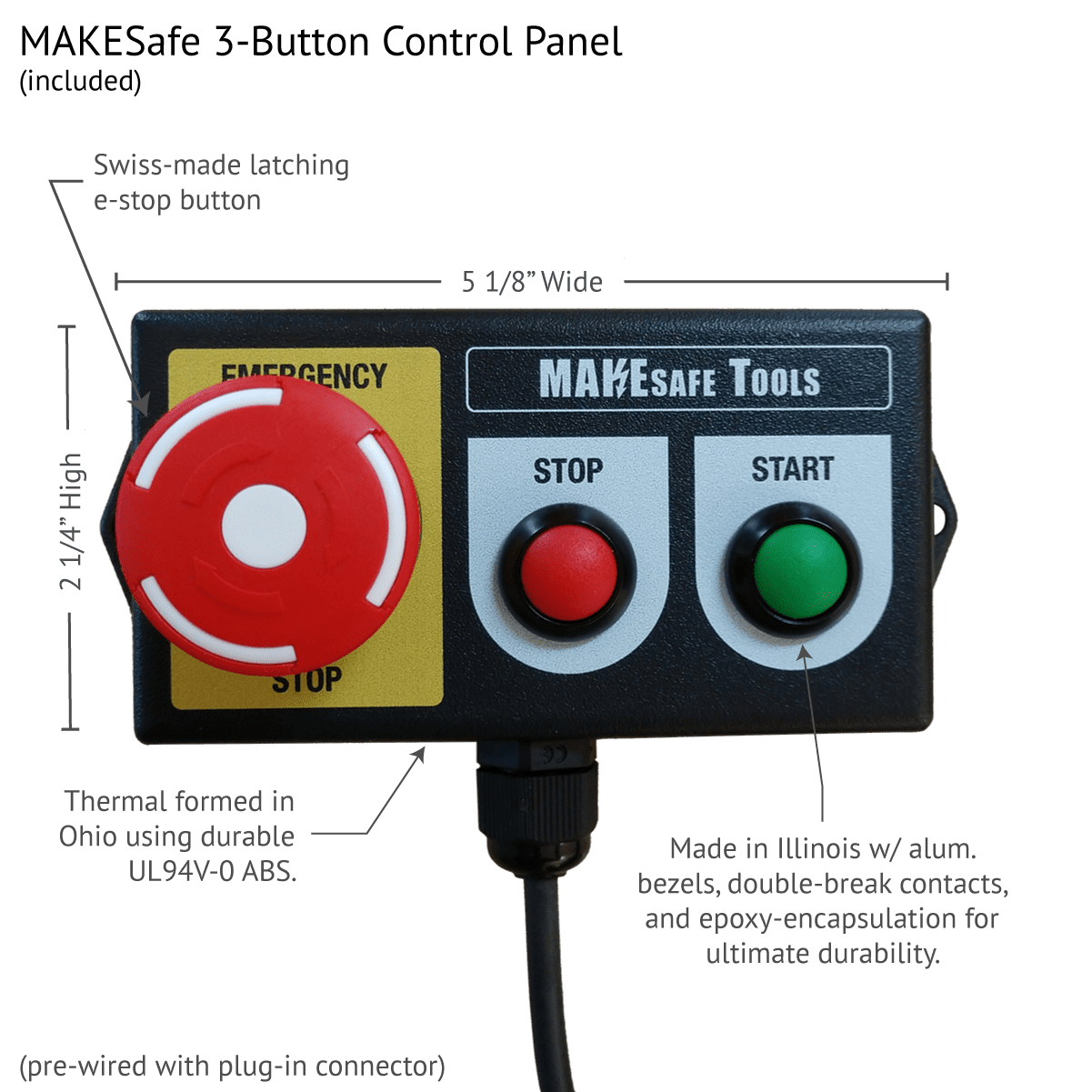

Button Panel Details:

The compact control panels are made of durable ABS plastic and maintains a UL94 V-0 rating. The start and stop buttons are custom manufactured by OTTO Controls in Illinois and are designed for long-term durability with solid aluminum bezels, a no-slip surface finish, and a strong tactile response. The latching emergency-stop button is Swiss-manufactured by EAO. The entire control panel is water, dust, and oil resistant and rated for millions of on/off cycles.

The control panel connects easily to the power tool brake via an industrial M12 twist connector. You can easily mount the control panel in a convenient location thanks to the dual mounting flange and 5 ft (1.5m) cable extension.

Approvals

UL508A: Industrial Control Panels
CSA: Industrial Control Equipment

Alternate Configurations

Our products are also offered with multiple configuration options and accessories, including:

Control Accessories: foot switches, additional e-stop buttons, guard interlocks, attachments for automation

Frequency: products can also be configured for 50hz operation

Plugs: products can be fitted at the factory with any plug type you require

If you want to explore these alternate configurations, please give us a call.

Specifications

Compatibility Guide: see product manual.

Need another configuration? Different plugs? Different Controls? Maybe an international version? Or, do you want to buy with terms? Request a quote!

Model Number Prefix
Input Voltage
Rated Horsepower
Approvals
Enclosure
Safety Rating
Power Connections
Dimensions
Weight
User Manual
These units are built to order and can be made to any specification.
Standard sizes are denoted by their model number suffix (e.g. HP1=1.0 HP, HP5=5.0 HP).
For example: Model "MMB-V240-P3-HP5" is rated for 5.0HP.
UL508A: Industrial Control Panels
CSA #14-13: Industrial Control Equipment
NEMA-rated polycarbonate/fiberglass composite enclosure. Includes mounting brackets.
single-channel (standard)
customer specified safety performance level (optional)
field connection to internal terminal blocks (standard)
pre-wired with 6′ SO cord (optional)
15.25″ x 13.25″ x 7.75″ (388 mm x 337 mm x 197 mm)
Approx. 35 lbs. (16 kg)
MMB-V120-P1
1ϕ 120V
MMB-V240-P1
1ϕ 240V
MMB-V240-P3
3ϕ 240V
MMB-V380-P3
3ϕ 380V
MMB-V480-P3
3ϕ 480V
MMB-V600-P3
3ϕ 600V

Model Number Guide

MMB
1
-
V240
-
2
P3
-
HP5
3
-

4

1. Product Family

MMB: Milling Machine Brake

2. Voltage

V120 - P1: 1ϕ 120V
V240 - P1: 1ϕ 240V
V240 - P3: 3ϕ 240V
V480 - P3: 3ϕ 480V
V600 - P3: 3ϕ 600V

3. Horsepower Rating

HP3  : 3.0 HP
HP5  : 5.0 HP
HP7  : 7.5 HP
HP10: 10  HP
HP15: 15  HP
HP20: 20  HP
HP25: 25  HP

4. Configuration Code

(blank)   : Standard 3-Button Control
FS1        : Foot Switch
INT        : 3-Button Control w/ Interlock
FS1-INT: Foot Switch w/ Interlock
C            : Control Pigtail

Documents & Downloads

Dimensional Drawings: Contact Us

CAD Files: Contact Us
