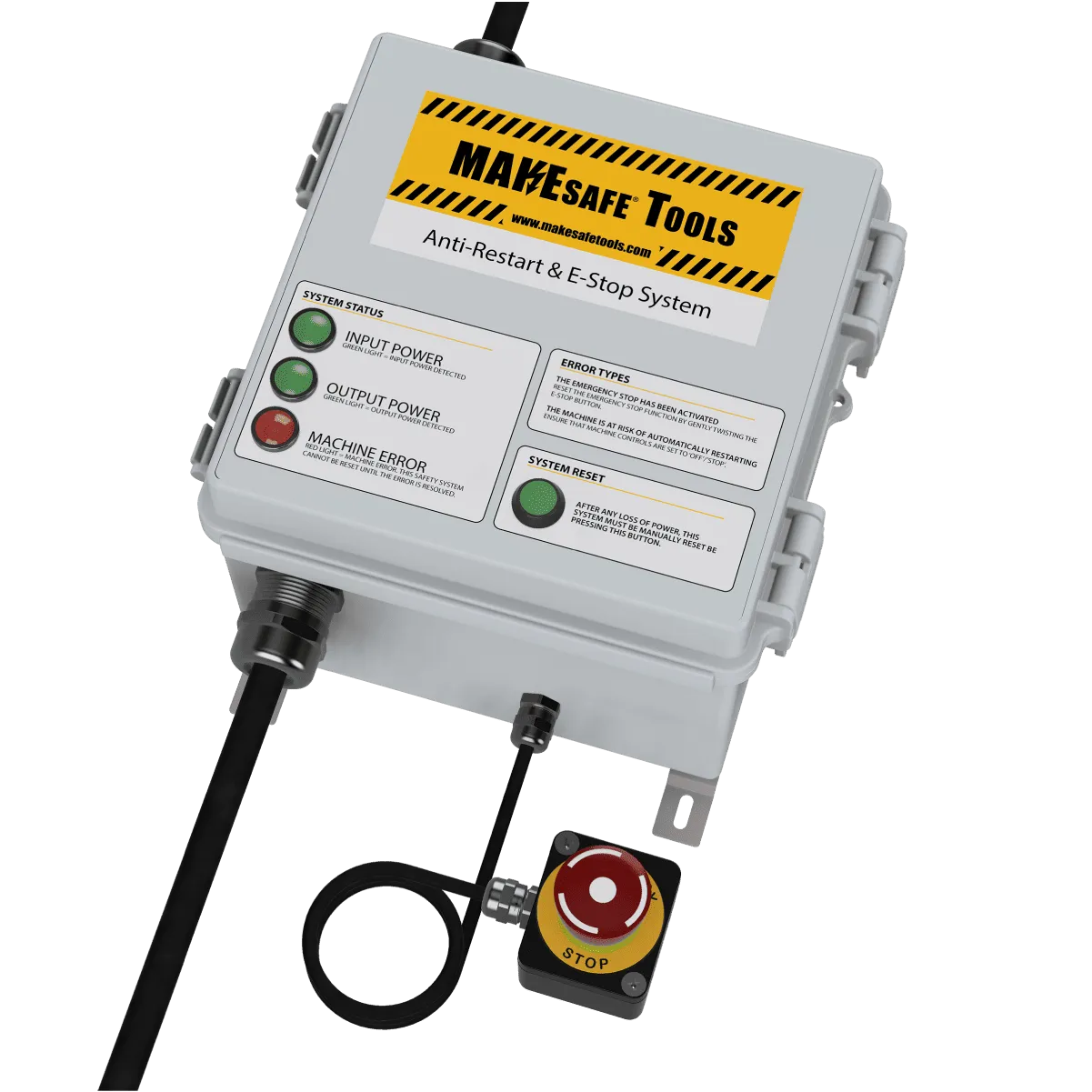

MAKESAFE ANTI-RESTART & E-STOP SYSTEM ISO VIEW

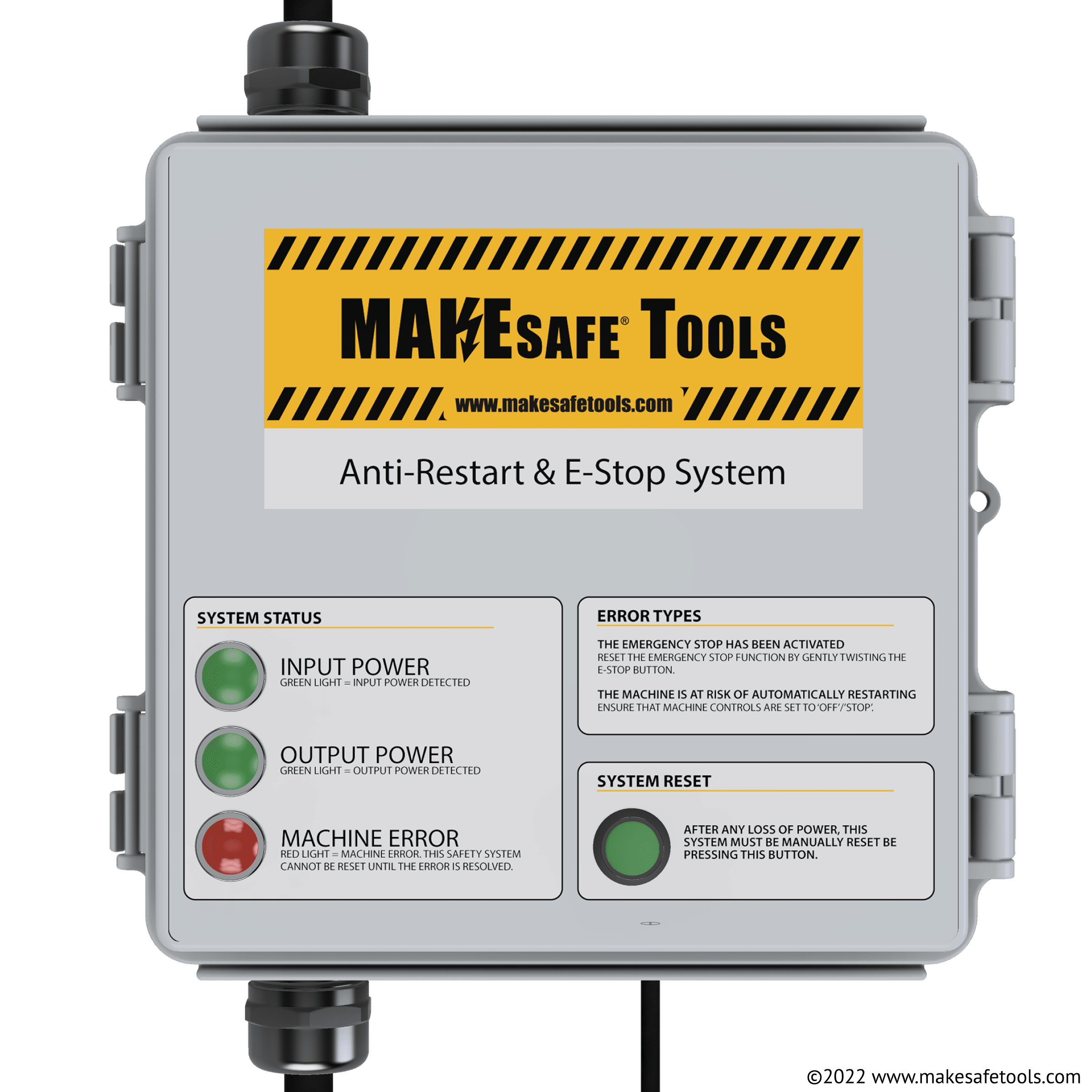

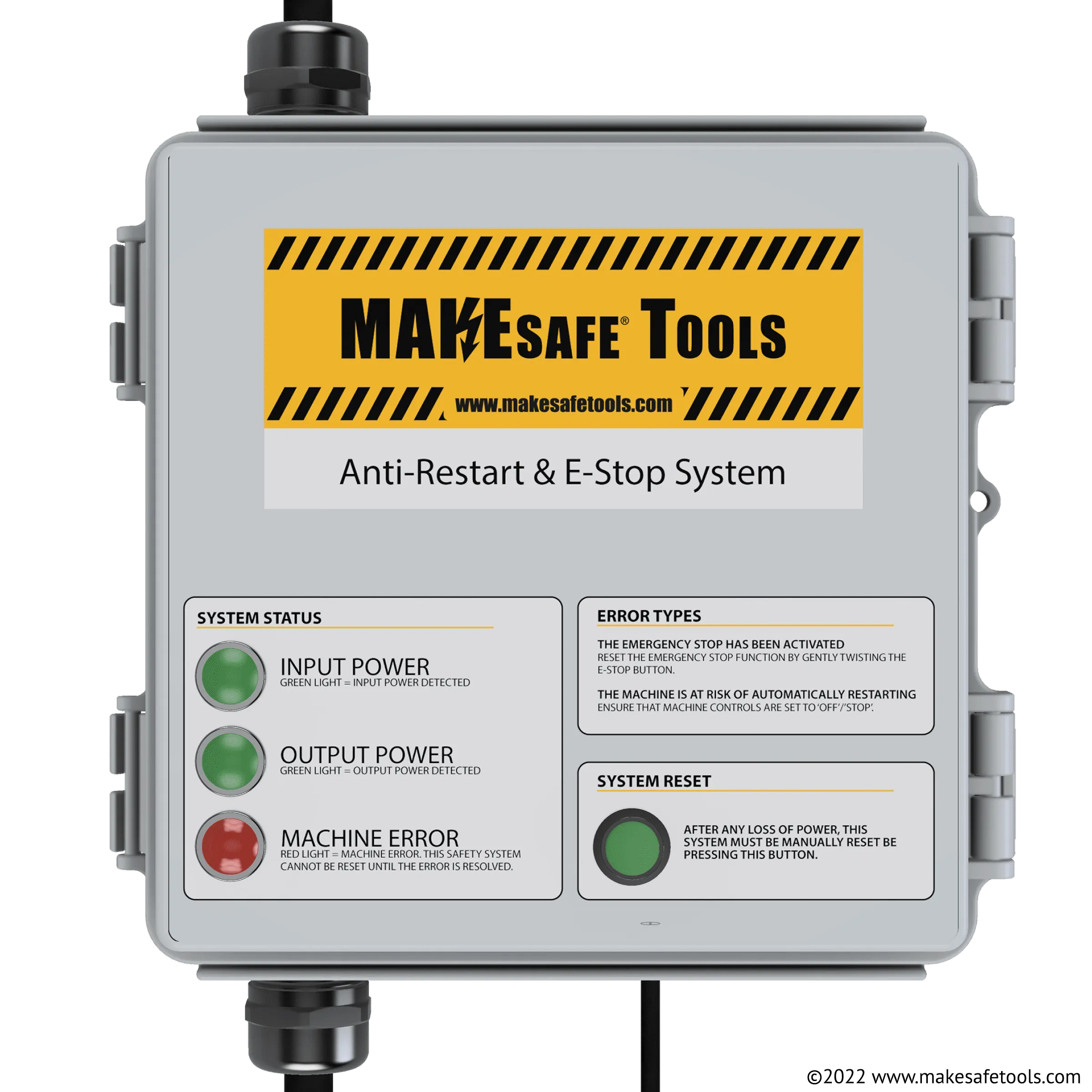

MAKESAFE ANTI-RESTART & E-STOP SYSTEM

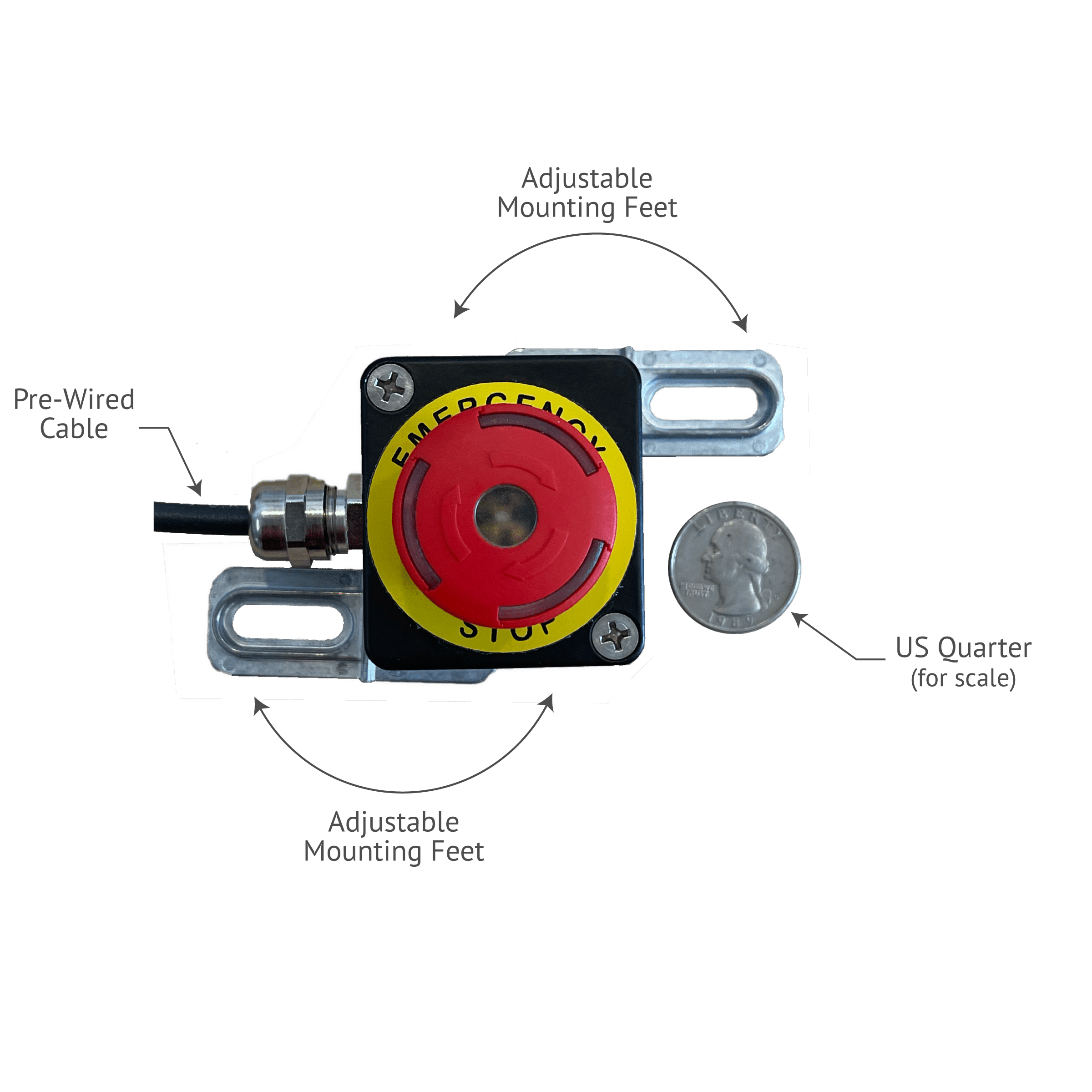

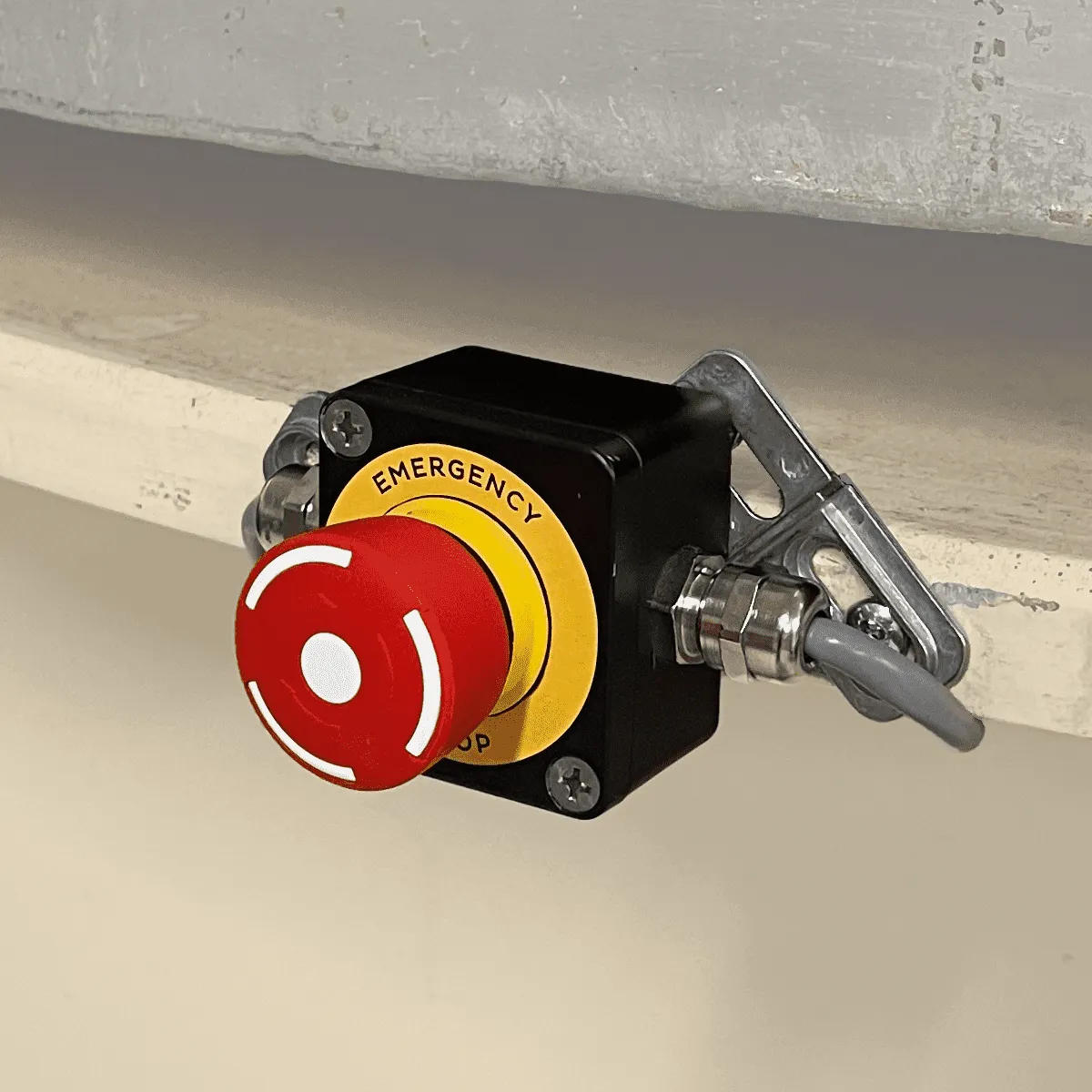

MIN-E-STOP SMALL EMERGENCY STOP
MIN-E-STOP SMALL EMERGENCY STOP COMPARISON

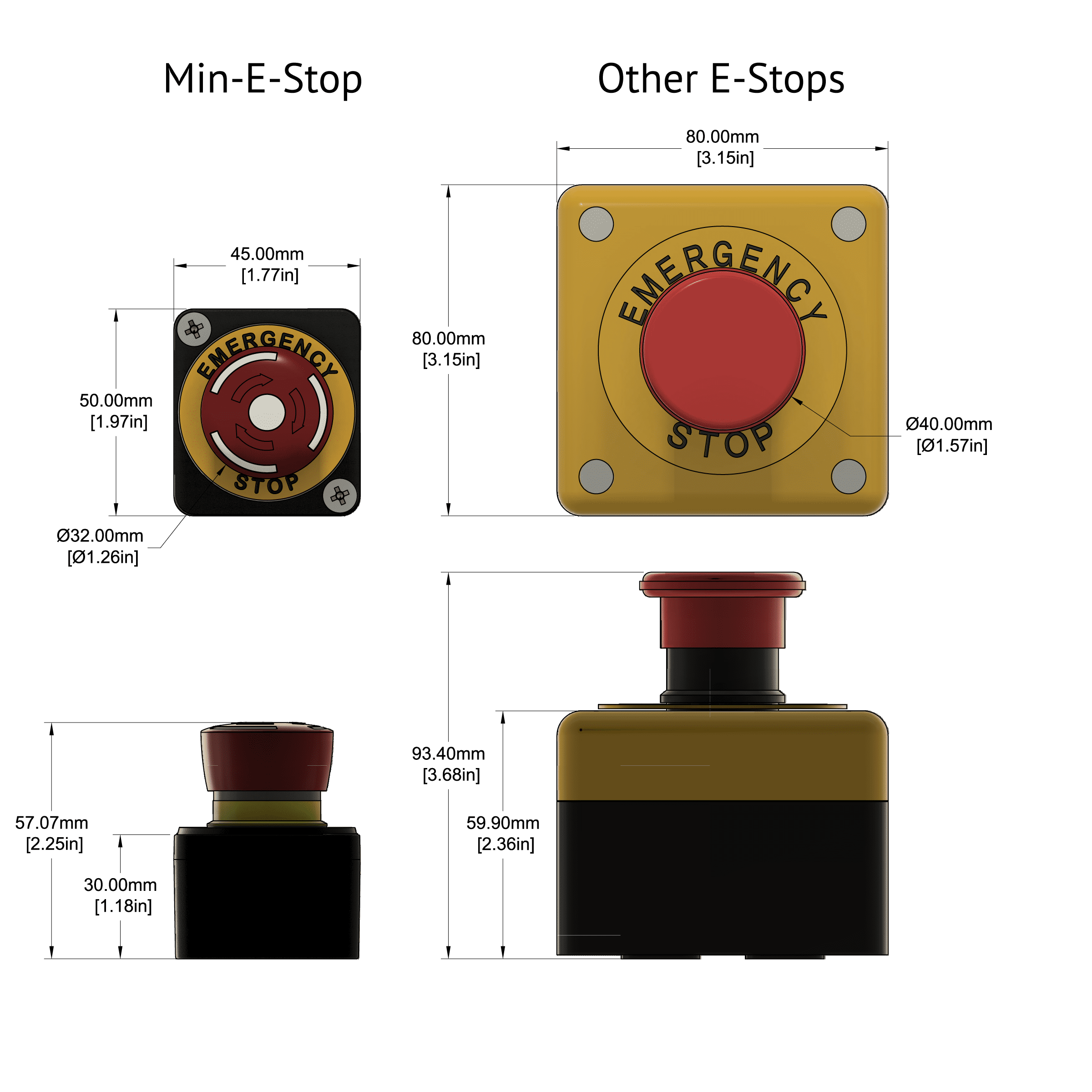

MIN-E-STOP SMALL EMERGENCY STOP DIMENSIONS

Industrial Anti-Restart & E-Stop System

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

(Anti-Restart + Emergency Stop w/ Machine-Switch Detection)

This system installs upstream of existing machinery to bring it into OSHA compliance. Includes an emergency-stop button on a remote tether for convenient mounting.

Need another configuration? Want to buy with terms? Want to explore quantity discounts? Request a quote!

Clear
SKU: N/A Category: Safety Systems
  • Description
  • Specifications
  • Model Number Guide
  • Documents & Downloads
  • Media
  • Reviews (1)

Description

Product Details:

This industrial motor control provides all of the following protections:

  • Anti-Restart
  • Emergency Stop (E-Stop)
  • Machine-Switch Detection

Our devices also:

  • Come Pre-wired for Easy Installation
  • Fully Approved Industrial Motor Controls (UL 508A)
  • Fully customizable (contact us)

Applications

MAKESafe Industrial Motor Controls can be used with any piece of industrial machinery but the most common applications are on standard machine tools like band saws, surface grinders, bench grinders.

Video Demos

Coming soon …



Need another configuration? Want to buy with terms? Request a quote!

Approvals

UL508A: Industrial Control Panels
CSA: Industrial Control Equipment

Alternate Configurations

Our products are also offered with multiple configuration options and accessories, including:

Control Accessories: foot switches, additional e-stop buttons, guard interlocks, attachments for automation

Plugs: products can be fitted at the factory with any plug type you require

If you want to explore these alternate configurations, please give us a call.

Specifications

Compatibility Guide: see product manual.

Need another configuration? Different plugs? Different Controls? Maybe an international version? Or, do you want to buy with terms? Request a quote!

Model Number PrefixCCP-V240-P3CCP-V480-P3CCP-V600-P3
Rated Input Voltage240VAC 3 PH, 60 Hz (50 Hz options available) 480VAC 3 PH, 60 Hz (50 Hz options available) 600VAC 3 PH, 60 Hz (50 Hz options available)
Rated Horsepower (UL508A)see model number suffix:    HP1 = 1.0 HP    |    HP5 = 5.0 HP    |    HP10 = 10.0 HP
Approvals
UL508A: Industrial Control Panels
CSA #14-13: Industrial Control Equipment
Power ConnectionsProvided with 6′ SO cord on power input and power output.
(NEMA power connectors also available)
Dimensions15.25″ x 13.25″ x 7.75″ (388 mm x 337 mm x 197 mm)
WeightApprox. 35 lbs. (16 kg)

Model Number Guide

IRE
1
-
V240
-
2
P3
-
HP5
3
-

4

1. Product Family

IRE: Industrial Anti-Restart & E-Stop

2. Voltage

V120 - P1: 1ϕ 120V
V240 - P1: 1ϕ 240V
V240 - P3: 3ϕ 240V
V480 - P3: 3ϕ 480V
V600 - P3: 3ϕ 600V

3. Horsepower Rating

HP3  : 3.0 HP
HP5  : 5.0 HP
HP7  : 7.5 HP
HP10: 10  HP
HP15: 15  HP
HP20: 20  HP
HP25: 25  HP

4. Configuration Code

(blank): With UL508A Sticker
NUL    : Without UL sticker

Documents & Downloads

Dimensional Drawings: Contact Us

CAD Files: Contact Us

Media

Video Demos

1 review for Industrial Anti-Restart & E-Stop System

  1. Rated 5 out of 5

    Florida Rocket Company – August 30, 2022

    We worked with Scott to customize a version of this system for our Bridgeport mill. Easy to install and met our expectations.
