MIN-E-STOP SMALL EMERGENCY STOP
MIN-E-STOP SMALL EMERGENCY STOP DIMENSIONS
MIN-E-STOP SMALL EMERGENCY STOP COMPARISON
MIN-E-STOP SMALL EMERGENCY STOP COMPARISON WITH WORDS
MIN-E-STOP MOUNTED ON CUSTOM LENS GRINDING MACHINE

Min-E-Stop

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

$195.00

ANSI-compliant, robust, and oh-so-tiny, the Min-E-Stop can be mounted exactly where you need it most.

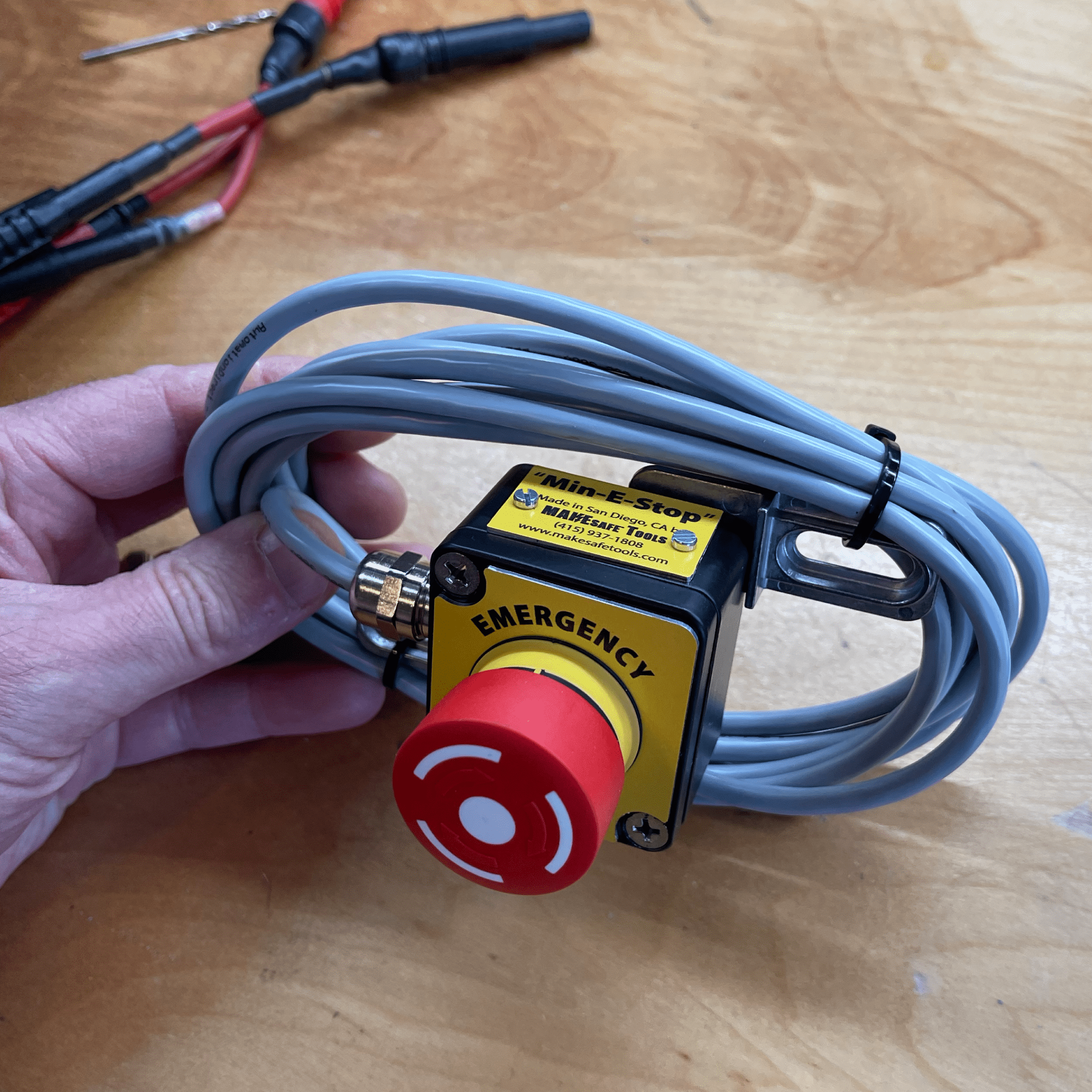

The Min-E-Stop is a small emergency stop button in an aluminum enclosure with pre-wired control cable. IP-67 Rated.

Need another configuration? Want to buy with terms? Want to explore quantity discounts? Contact us!

SKU: MES-1L Categories: Components, Safety Accessories Tag: Safety Accessories
  • Description
  • Specifications
  • Model Number Guide
  • Reviews (1)

Description

Button Details:

This swiss-made emergency stop button is best in class and especially sourced for it’s low profile.

  • Contact Configuration: 2 Normally Closed (alternate configurations available)
  • Actuation Style: latching, twist-to-release
  • Contact Ratings:
    • Double-break, gold-plated silver contact
    • Rated as “forced opening” per EN 60947-5-5
    • AC-15, as per EN IEC 60947-5-1:
      • 3A @ 120VAC
      • 1.5A @ 240VAC
    • DC-13, as per EN IEC 60947-5-1 (normally-closed contacts):
      • 2.5A @ 12VDC
      • 2.5A @ 24VDC
      • 1.25A @ 48VDC
      • 1.0A @ 60VDC
    • Recommended minimum operation: 1mA @ 1VDC/1VAC
  • Illumination: none (but available as an option).
  • Rated Impulse Withstand Voltage: 4kV
  • Actuating force: 17N ±4N
  • IP Rating: IP67

Cable Details:

  • Conductors: 4 x 22 AWG
  • Voltage Rating: 1,000V
  • Jacket: PUR
  • Flexibility: very flexible
  • Length: 6 ft. (extended options available)

Enclosure Details:

  • Material: Cast aluminum
  • Color: Black (anodized)
  • IP Rating: IP67
  • Cable Gland: Nickel-plated brass, IP-67 rated
  • Cable Exit: 1 x left (other options available).

Specifications

Illumination Specs (optional)

LED Color: Red

LED operating voltage: 5 … 30 VDC

Current consumption: 9.7 …12.4 mA

Contact Ratings:

  • Double-break, gold-plated silver contact
  • Rated as “forced opening” per EN 60947-5-5
  • AC-15, as per EN IEC 60947-5-1:
    • 3A @ 120VAC
    • 1.5A @ 240VAC
  • DC-13, as per EN IEC 60947-5-1 (normally-closed contacts):
    • 2.5A @ 12VDC
    • 2.5A @ 24VDC
    • 1.25A @ 48VDC
    • 1.0A @ 60VDC
  • Recommended minimum operation: 1mA @ 1VDC/1VAC

Model Number Guide

MES
1
-
LR
2
-
NC2
3
-
LUM
3

1. Product Family

MES: Min-E-Stop

2. Cable Exit Direction

L   : Left
LR: Left & Right (Series Pass-Through)

3. Contact Style

NC      : 1 x NC
NC2    : 2 x NC
NONC: 1 x NC, 1 x NO

3. Illumination

(blank): None
LUM   :Red LED

1 review for Min-E-Stop

  1. Rated 5 out of 5

    Collins Aerospace – March 27, 2021

    We use these for some custom built machinery in our lens polishing shop and their low profile makes them perfect for easy access but without the risk of getting bumped by a passer-by.
